29.4V 5A Li. FePO4 Battery Charger, 150W Output P | RFQ Sourcing Details
Rfid Ac Chargers · Quote on request
This is a product procurement detail page: check specs, images, category context and related sourcing paths before sending an RFQ.
Product specs
Buyer's Digest
Use this page as a product-first sourcing checkpoint before sending an RFQ. Category: Rfid Ac Chargers. Confirm application fit, capacity, materials, destination, lead time and compliance requirements before comparing suppliers.
Original product description
29.4V 5A Li. FePO4 Battery Charger, 150W Output Power Customized For 8S . Black or silver aluminum casing. Rated ouput 24V 5A and max charging voltage is 29.4V. As a swtiching mode technology battery charger, it has small size and light weight, much portable for user. This charger has in peed and high efficiency.
It is a fully automatic charging charger, just power on and connect it to your battery and then leave it alone. Features: Advanced high frequency switching mode power supply technology. DC output isolated from AC input. Auto worldwide Input 110 / 230. Vac(90 ~ 264. Vac), 50. Hz~60. Hz.
Charging parameters are insensitive to the AC input line voltage variations. Comple ly Charged or Stand by Possibility to customize charging curve for request. Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity. Efficiency > 90%. Forced ventilation with fans. 100% full load burn-in test.
Aluminum casing, light weight, portable. Technical Specs.: 1) Dimensions(Lx.
WxH): 155 x 90 x 50 MM 2) Net weight: 0.9 KG 3) Max charging voltage(CV): 29.4 volts 4) Floating voltage: custom-made 5) Max output current (CC): 5 amps 6) Charging method: Pre-charge, CC, CV, floating / trickle or shut off 7) AC input voltage: 110-230.
Vac universal 8) AC input freq.: 50/60 Hz 9) AC plug: custom-made 10) Output connector type: customized by applications 11) Enclosure: Aluminum Output series: 180W Size: 155×90×50 mm Net weight: 0.9 KG Input Model App ly to battery types Floating V C V (V) CC (A) Switching AC Input: 85~264V Frequency: 47~63HZ VL1208L 12V Li.
FePO4 Battery 14.6V 8A CC5~8% VL1208 12V Lead-acid Battery 13.5V 14.7V 8A CC20% VL2405LM 24V Li-MnO2 Battery 29.4V 5A CC5~8% VL2405 24V Lead-acid Battery 27.6V 29.4V 5A CC20% VL3604L 36V Li-MnO2 Battery 42V 4A CC5~8% VL3604 36V Lead-acid Battery 41.4V 44.1V 4A CC20% VL4803LM 48V Li-MnO2 Battery 54.6V 3A CC5~8% VL4803 48V Lead-acid Battery 55.2V 58.8V 3A CC20% Note: customized input / output / plug type / connectors are available.

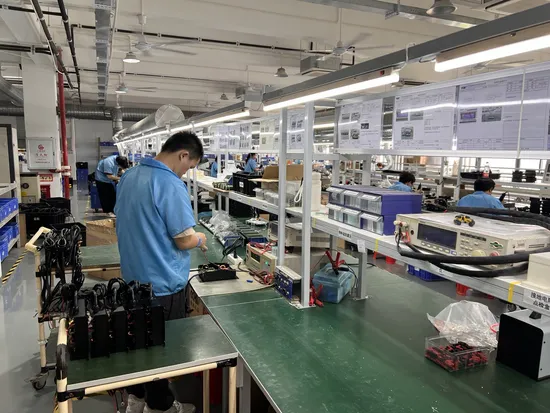

Factory Pictures: Quality Control: We have passed Quality Management ISO 9001:2015 and Environmental Management ISO 14001:2015. We control our quality as following 6 steps: Step 1 Using Famous Brand Components: Only use famous brand and high quality components and choose suppliers with
29.4V | Applications and Buyer Notes
29.4V is organized as a sourcing-ready Rfid Ac Chargers reference. The page combines visible product or company data with structured procurement cues so buyers can compare application fit, specifications, quantity, quality requirements and lead-time questions
Applications
- Initial shortlist building for related product or supplier options.
- Specification and application fit review before bulk purchasing.
- Category, keyword and detail-page comparison before sending an RFQ.
Key specifications
- Category
- RFID AC ChargersBased on visible page data; confirm exact value in the RFQ.
- Brand
- Components: Only use famousBased on visible page data; confirm exact value in the RFQ.
- Unit
- setBased on visible page data; confirm exact value in the RFQ.
- Size
- 155×90×50 mm NetBased on visible page data; confirm exact value in the RFQ.
- type
- customized byBased on visible page data; confirm exact value in the RFQ.
- Model
- App ly to battery types Floating V C V (V) CC (A) Switching AC Input: 85~264VBased on visible page data; confirm exact value in the RFQ.
- power
- supply technology. DC output isolated from AC input. Auto worldwide Input 110 /Based on visible page data; confirm exact value in the RFQ.
Buyer tips
- State quantity range and split-delivery needs before price comparison.
- Add certification, material or inspection standards when they affect acceptance.
- For time-sensitive projects, include target arrival date and destination.
- For special applications, describe operating condition, installation environment and duty cycle.
FAQ
What should buyers confirm first?
Confirm application, specification, quantity, destination and lead-time requirements before comparing offers.
Can buyers inquire when specs are incomplete?
Yes. Add model, material, size, use case and inspection needs in the RFQ to make replies comparable.
How should this listing be evaluated?
Check title, category, specifications and related keywords against the actual sourcing requirement.
